Model FA40501-ArcD Two D-ring Climbing Non-Belted Arc Flash Premium Full Body Harness

Fall Protection
<
>

Model FA40501-ArcD Two D-ring Climbing Non-Belted Arc Flash Premium Full Body Harness

View the C&G Catalogue

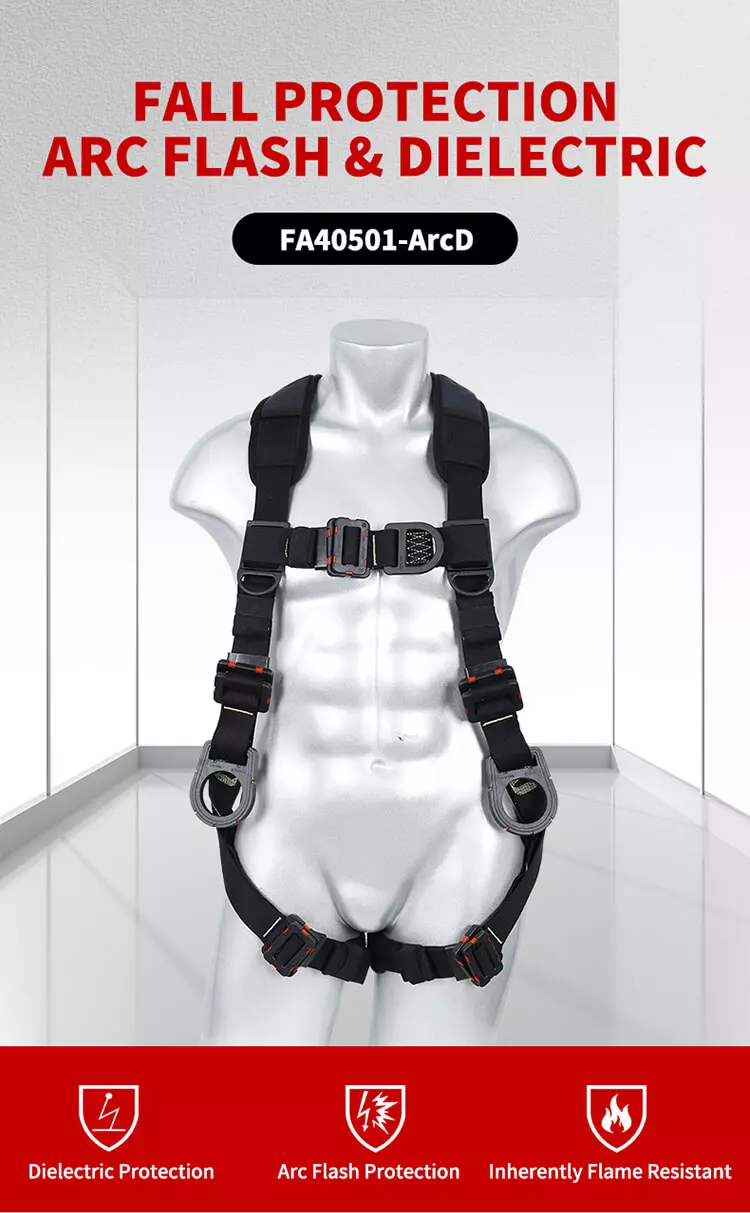

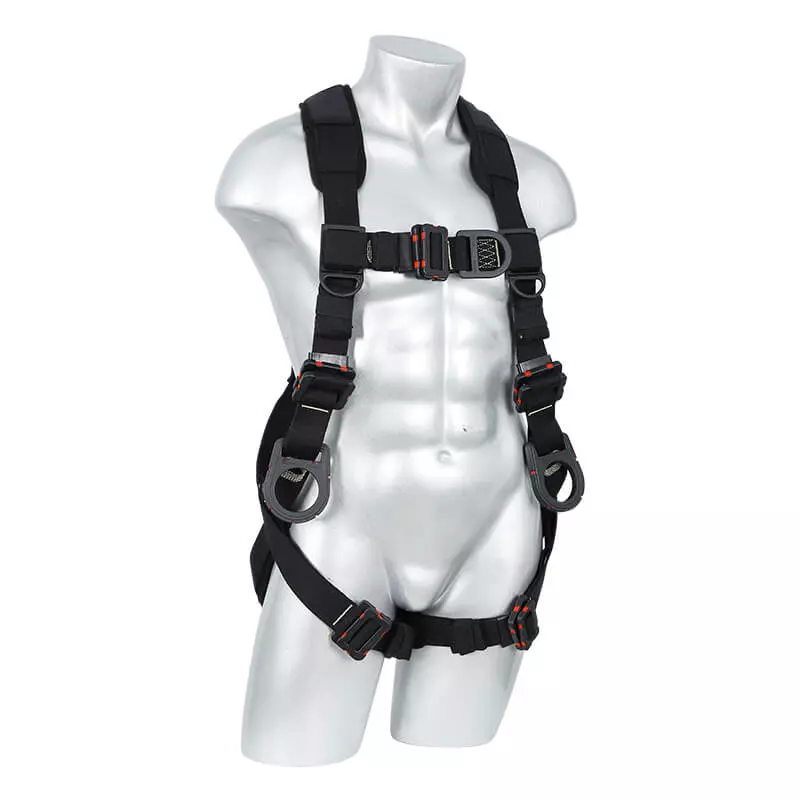

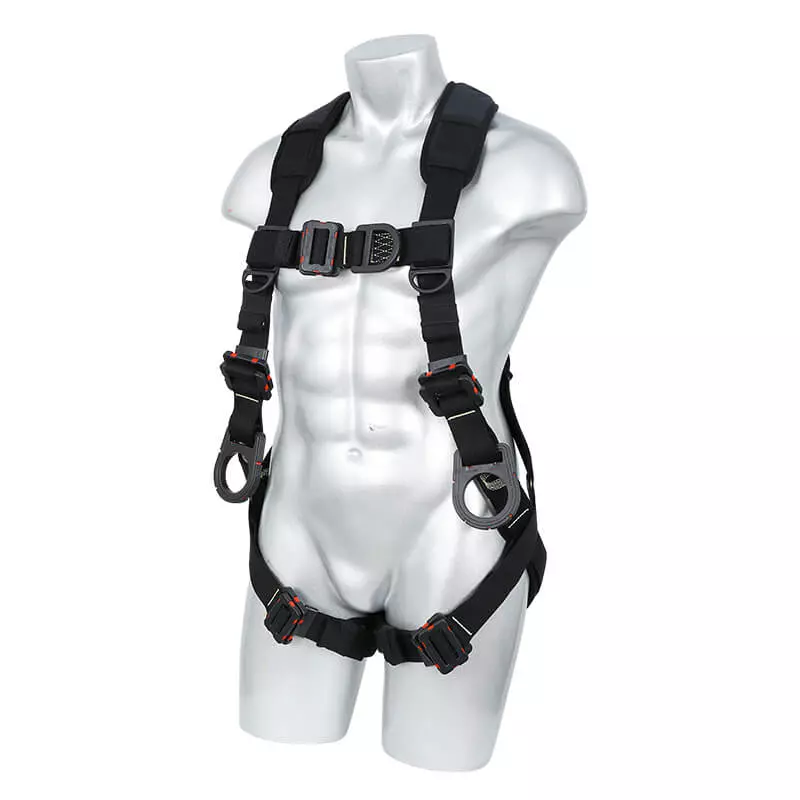

Model FA40501-ArcD Two D-ring Climbing Non-Belted Arc Flash Premium Full Body Harness with 9kV rated overmolded Normal connect chest and leg closures

Request a Sample Bulk Orders

If you need timely service, please contact us through online chat on our website
or Email: inquiry@cgprotection.com
WhatsApp: +8617317656853

Model FA40501-ArcD Two D-ring Climbing Non-Belted Arc Flash Premium Full Body Harness with 9kV rated overmolded
Normal connect chest and leg closures is lightweight and provides you the maneuverability to get your job done right with leg
straps for all-day comfort.

1. Performance Specifications

Item Specification
Static Strength 3600 lbs. minimum
ANSI User Capacity One user up to 310 lbs. max
OSHA User Capacity Allowable up to 425 lbs. max

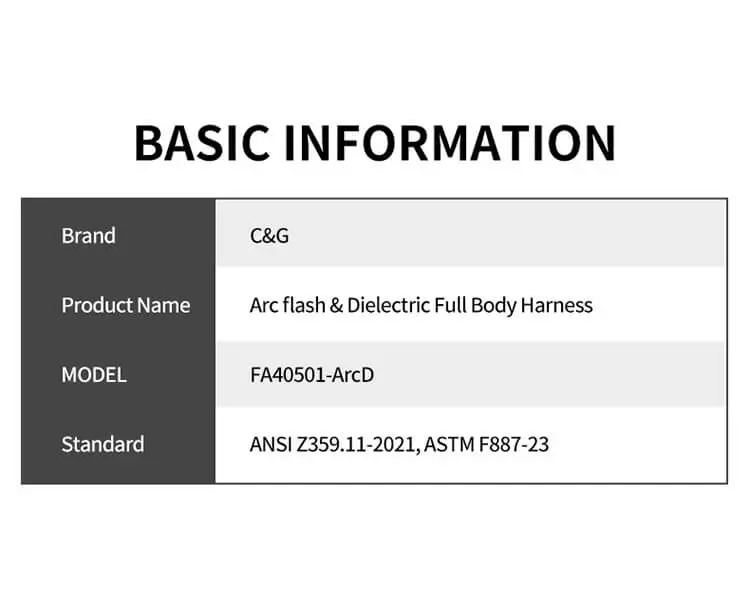

2. Relevant Standards

Standard Category Standard Code
ANSI ANSI Z359.11-2021
OSHA 1910.140, 1926.502
ASTM ASTM F887-23

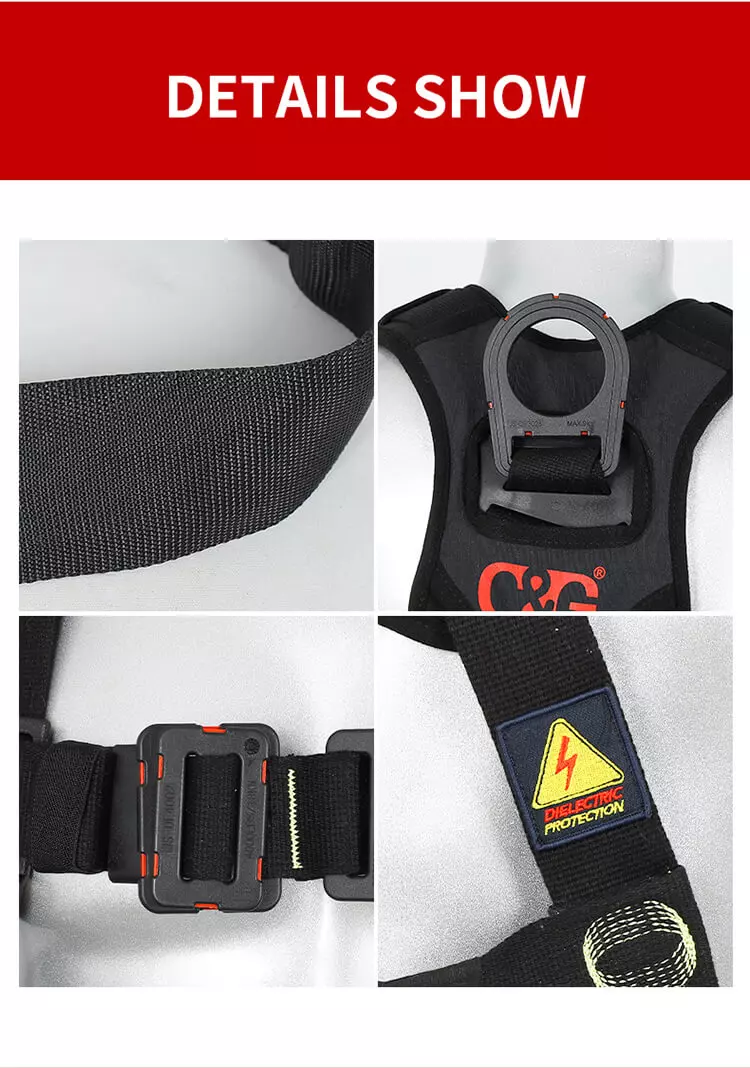

3. Material Specifications

Component Material / Performance
Webbing Aramid (5,000 lbs. minimum strength)
D-ring Overmolded Alloy Steel (5,000 lbs. minimum strength)
Adjusters Overmolded Alloy Steel (5,000 lbs. minimum strength)
Normal Connect Buckles Overmolded Alloy Steel (5,000 lbs. minimum strength)

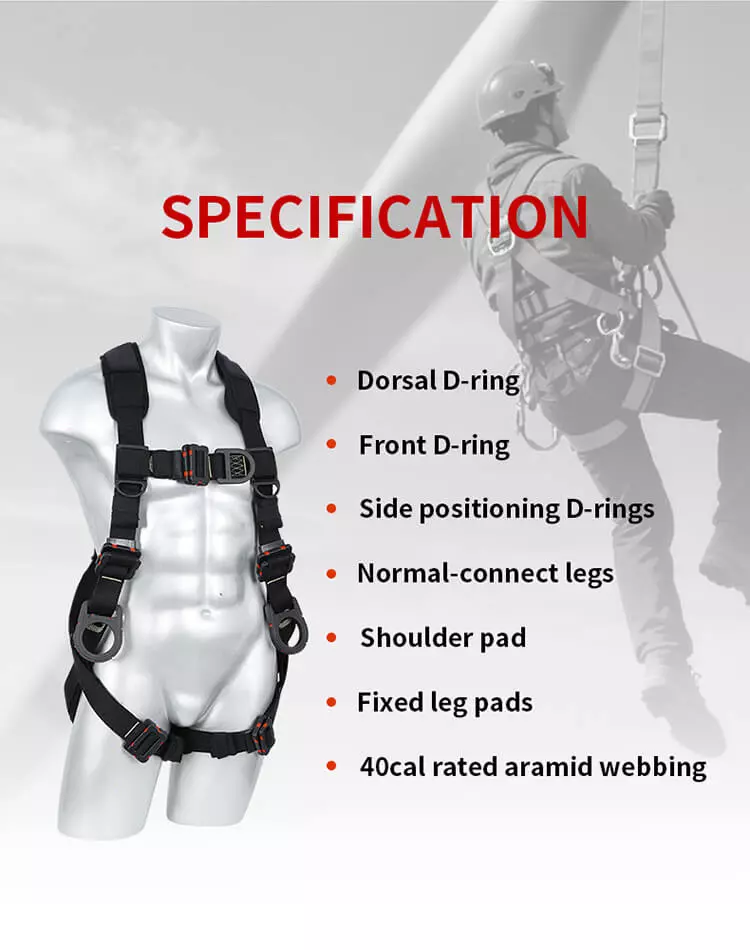

4. Features

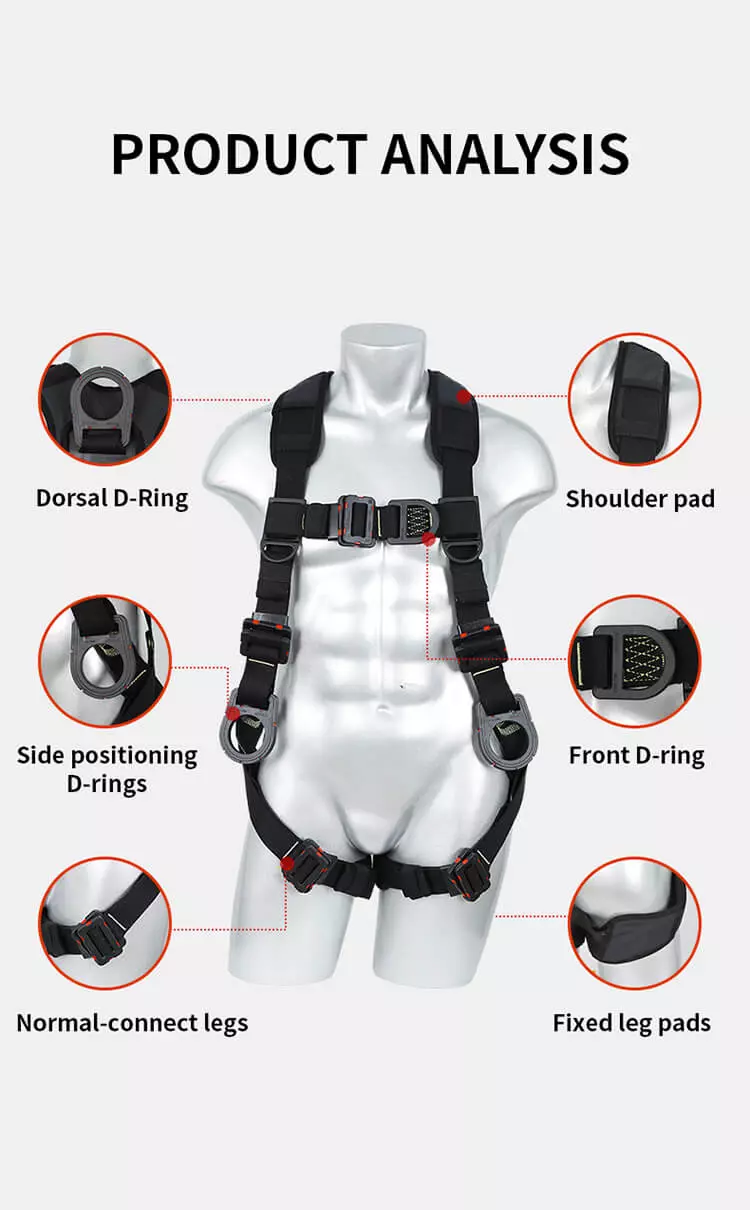

Features

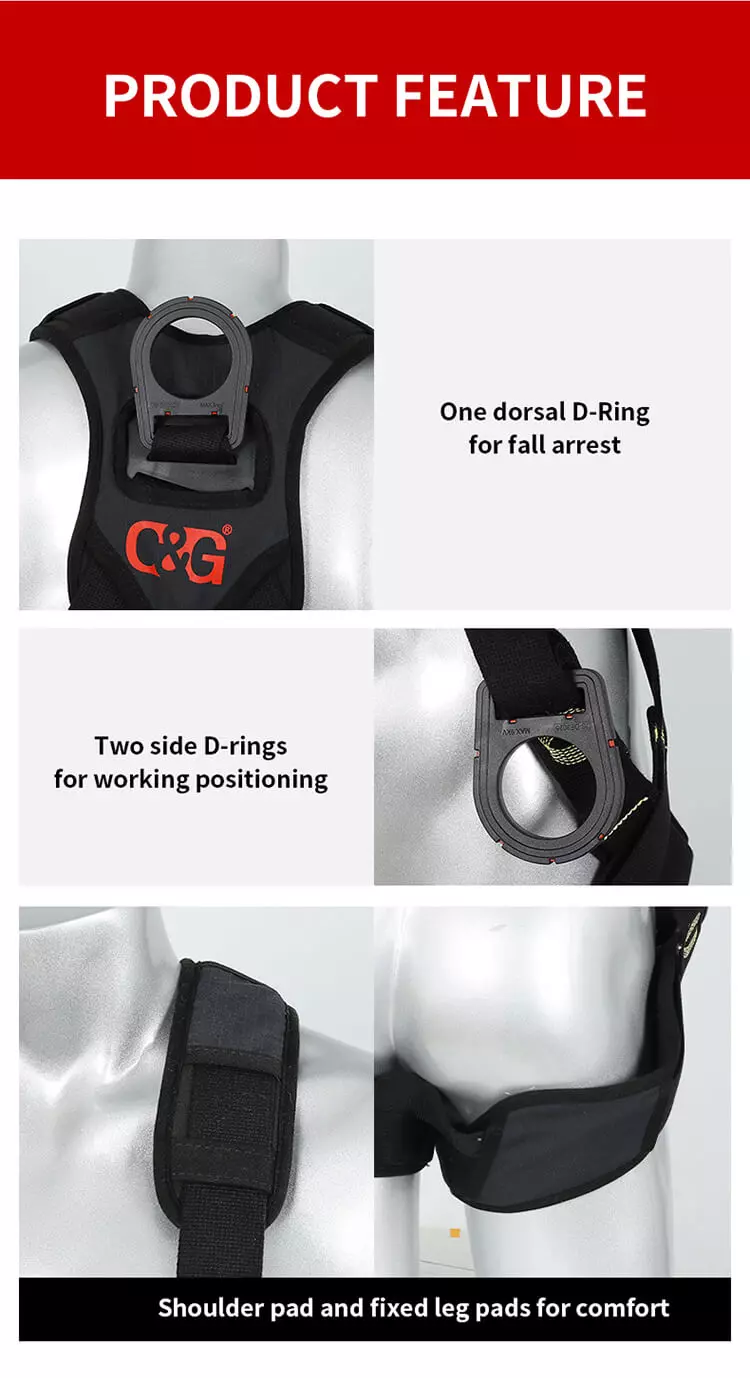

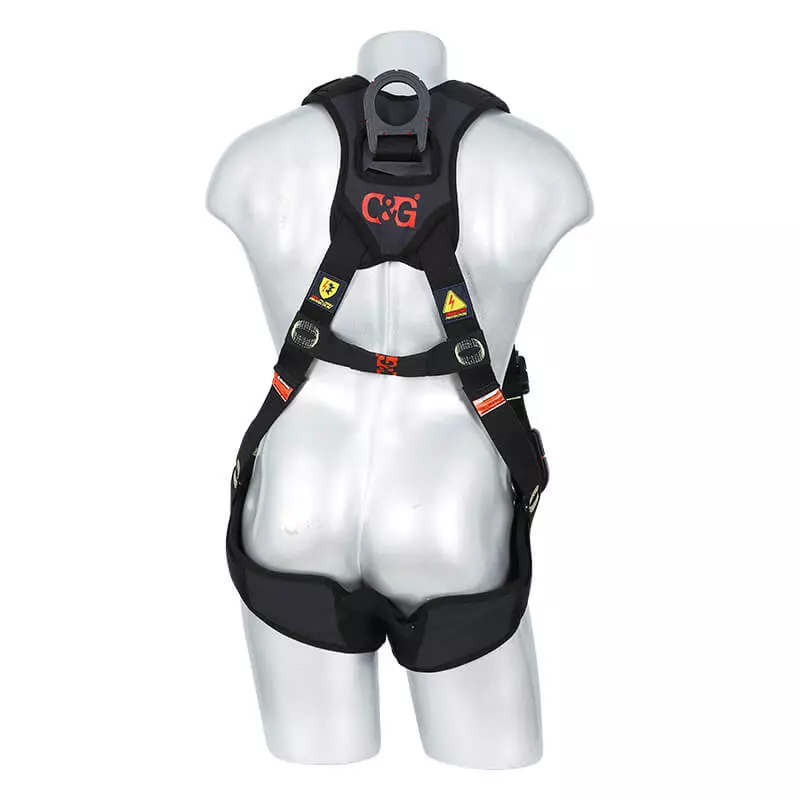

Dorsal D-ring
Front D-ring

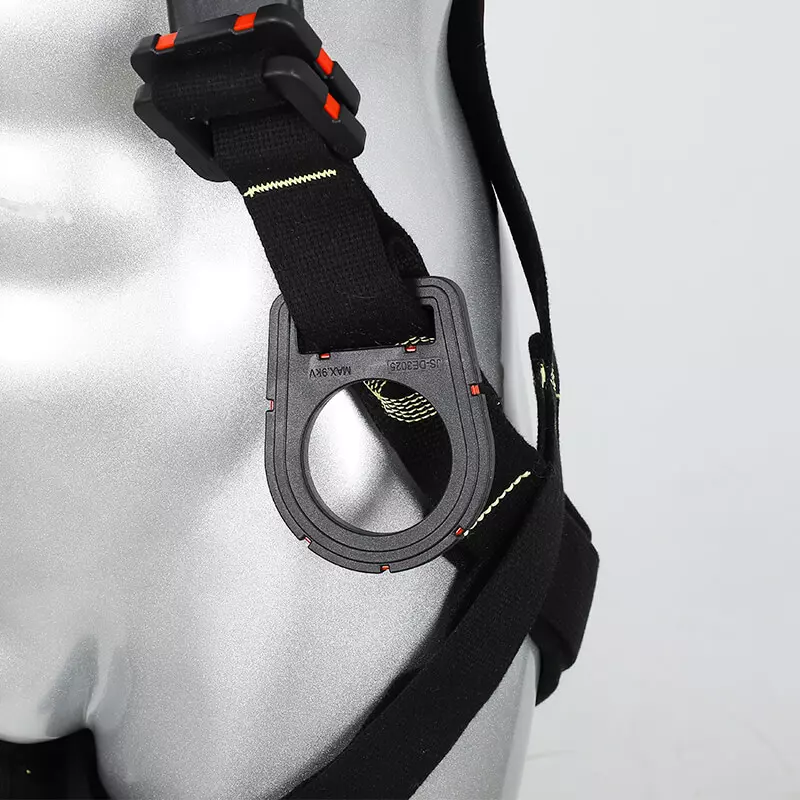

Side positioning D-rings
Normal-connect legs
Shoulder pad
Fixed leg pads
40 Cal rated aramid webbing
