FA20501-ArcD Insulated arc protection fall protection equipment

Fall Protection
<
>

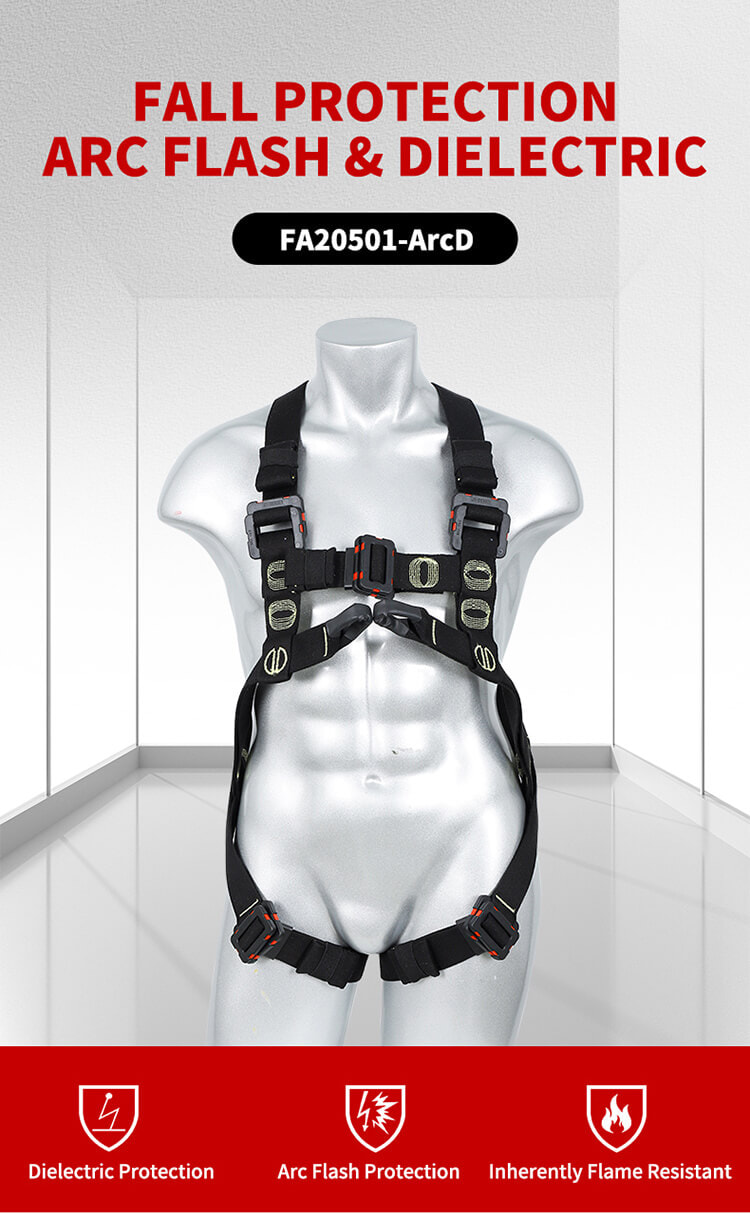

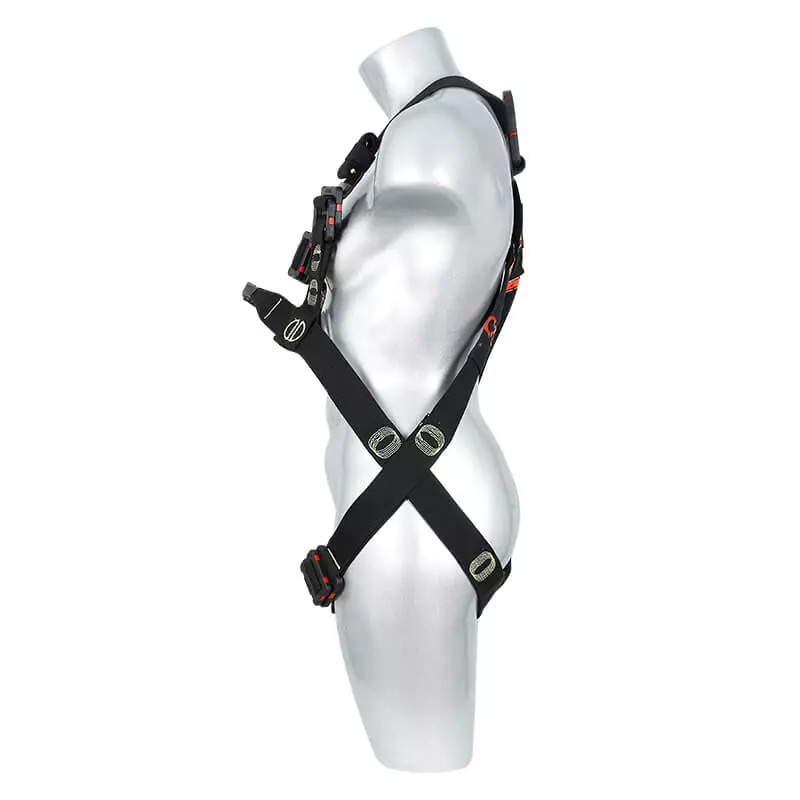

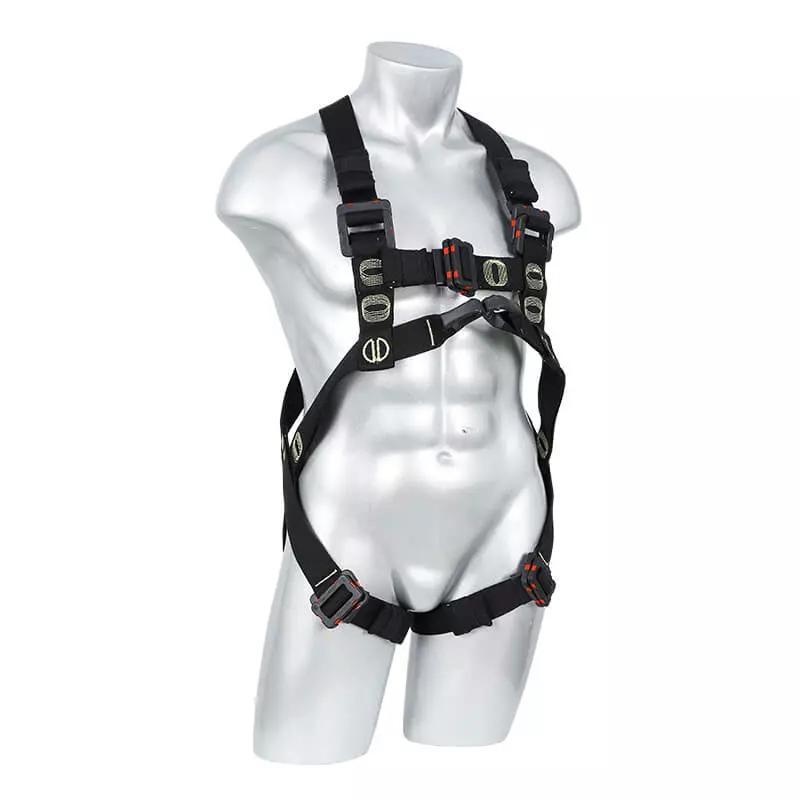

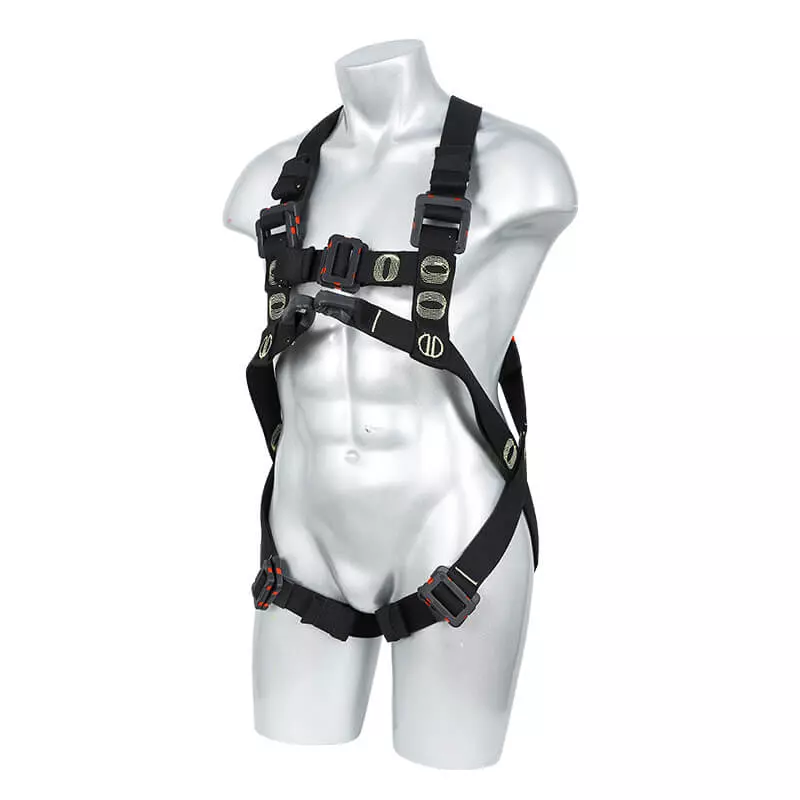

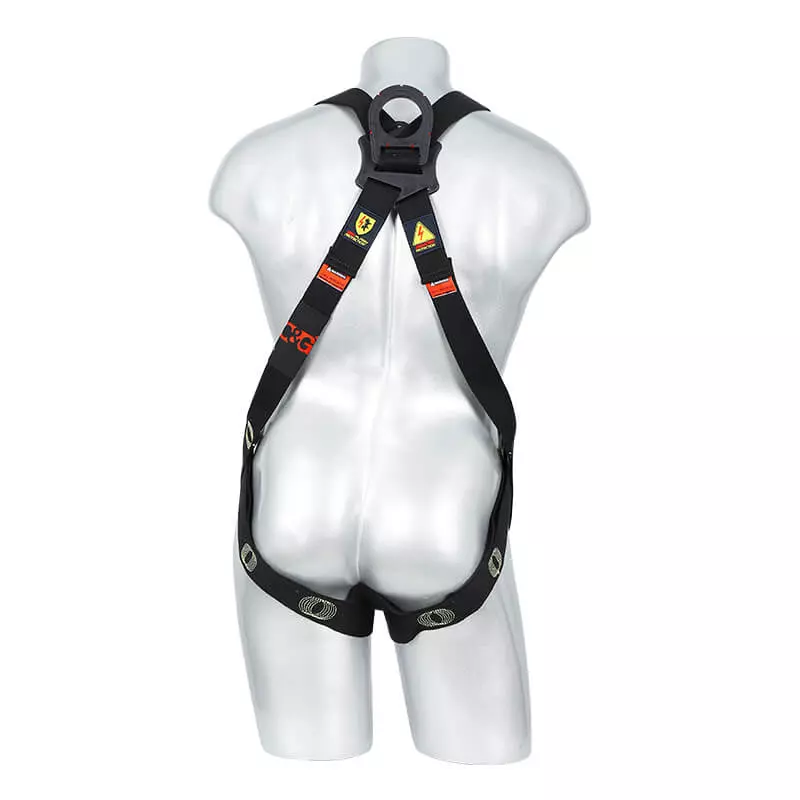

FA20501-ArcD Insulated arc protection fall protection equipment

View the C&G Catalogue

Category Item Specification Performance Specifications Static Strength 3600 lbs. Minimum ANSI User Capacity One User up to 310

Request a Sample Bulk Orders

If you need timely service, please contact us through online chat on our website
or Email: inquiry@cgprotection.com
WhatsApp: +8617317656853

Category Item Specification
Performance Specifications Static Strength 3600 lbs. Minimum
  ANSI User Capacity One User up to 310 lbs. Max
  OSHA User Capacity Allowable up to 425 lbs. Max

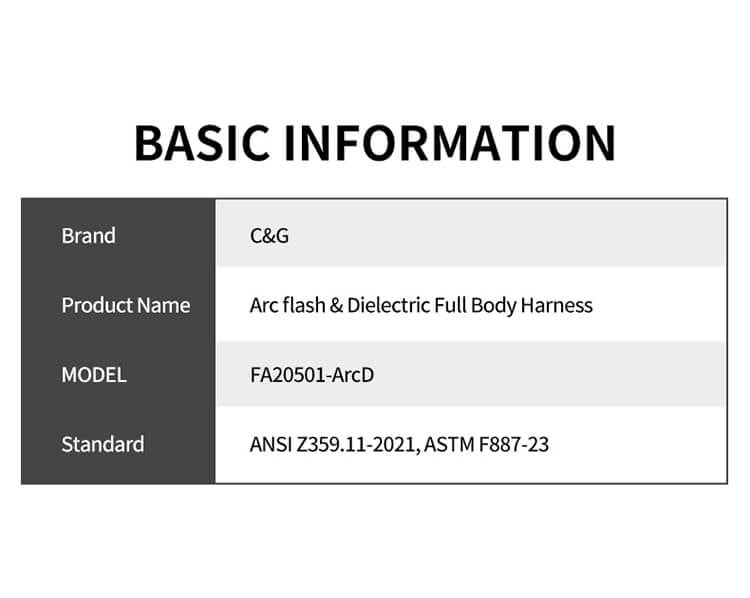

Relevant Standards ANSI ANSI Z359.11-2021
  OSHA 1910.140, 1926.502
  ASTM ASTM F887-23
Material Specifications Webbing Aramid (5,000 lbs. minimum strength)
  D-ring Overmolded Alloy Steel (5,000 lbs. minimum strength)
  Adjusters Overmolded Alloy Steel (5,000 lbs. minimum strength)
  Connect Buckles Overmolded Alloy Steel (5,000 lbs. minimum strength)

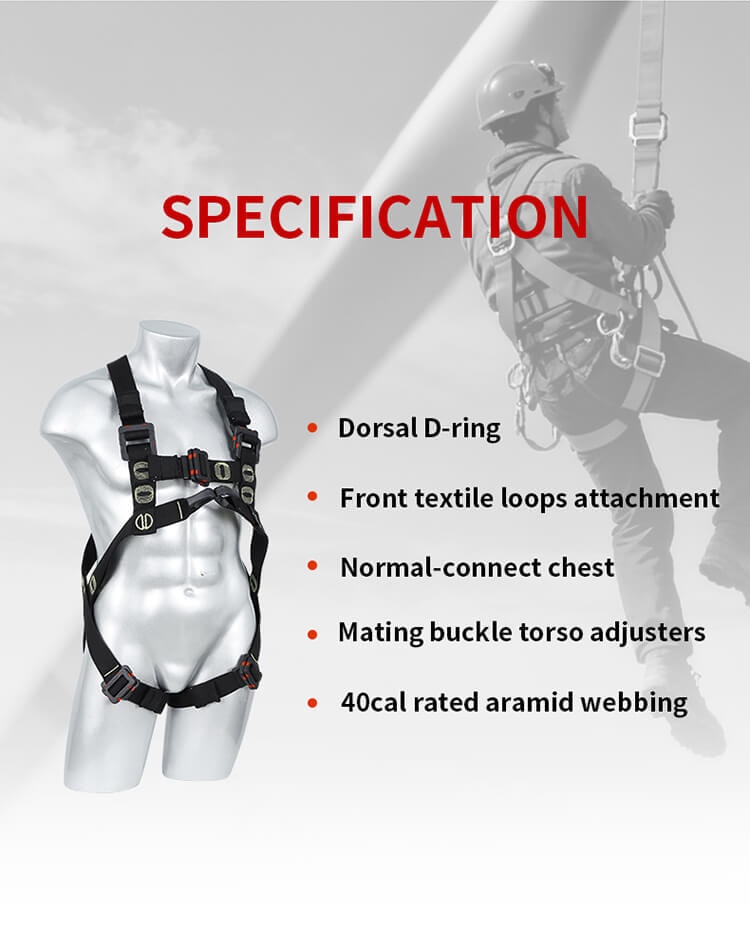

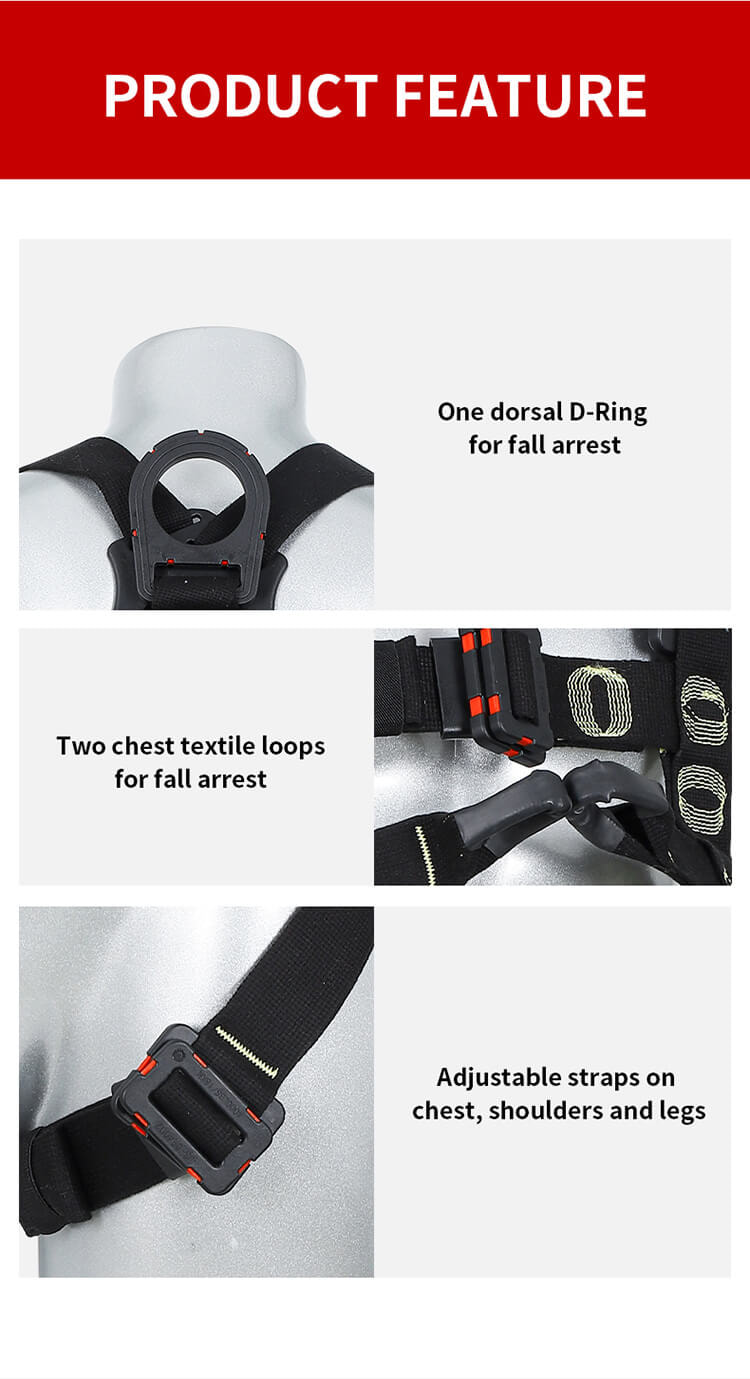

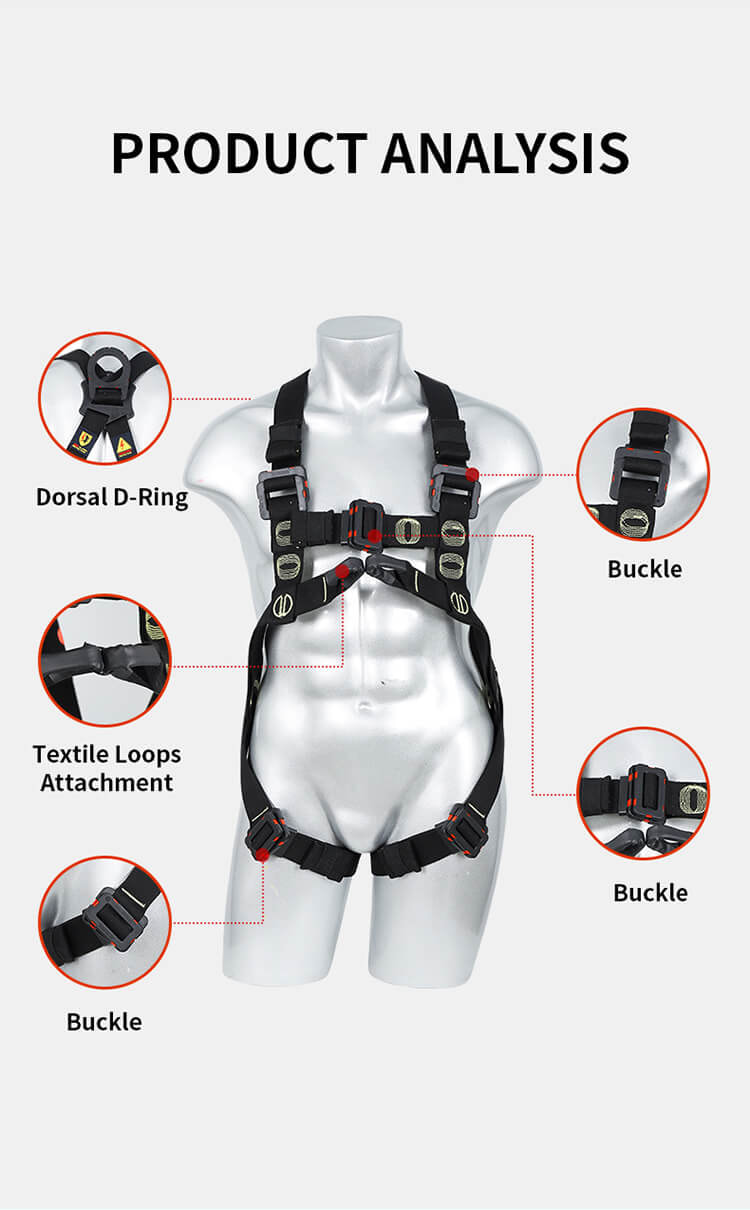

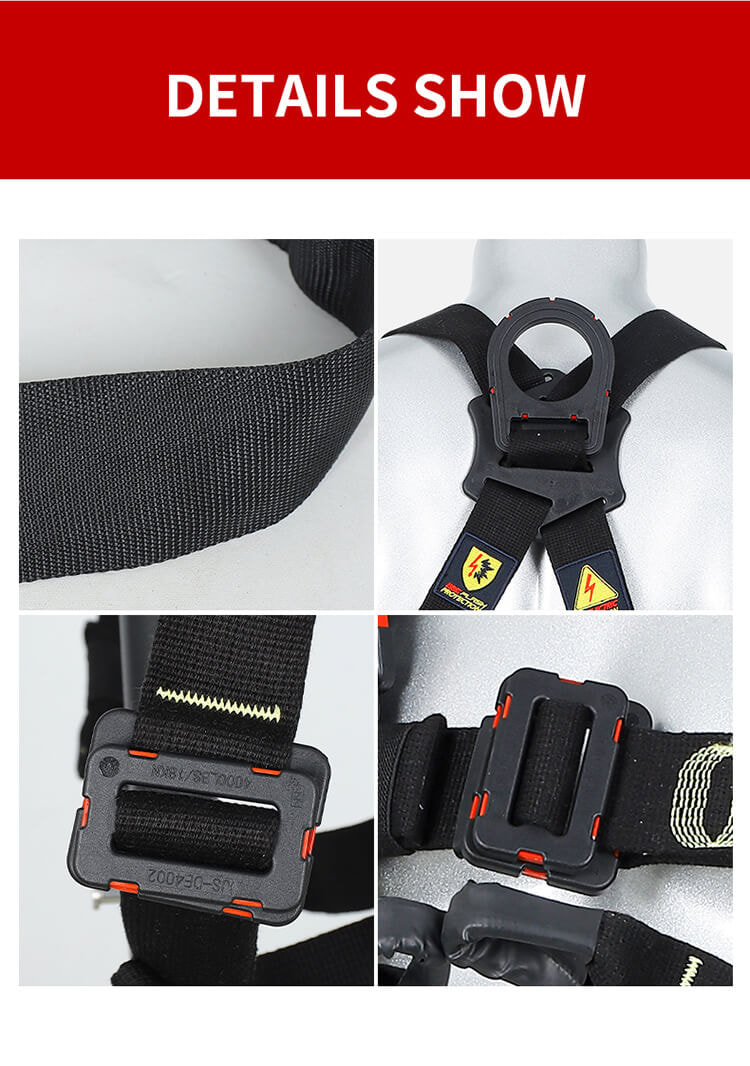

Features   • Dorsal D-ring
• Front textile loops attachment
• Normal-connect chest
• Mating buckle torso adjusters
• 40 Cal rated aramid webbing
