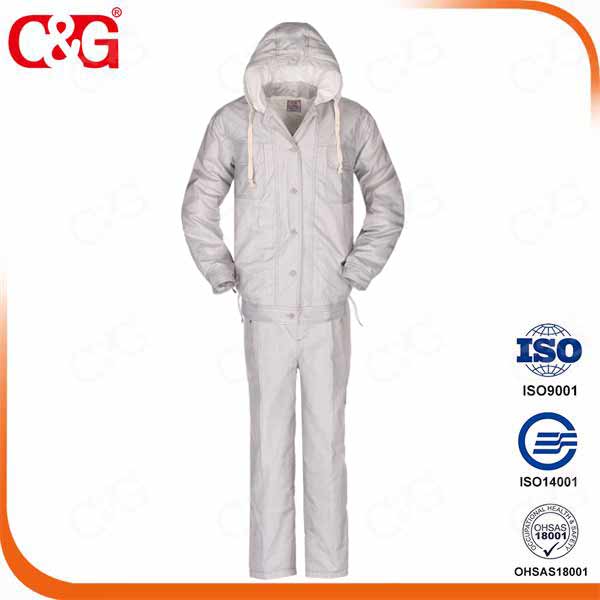

Electrical Conductive Suit，500KV High Voltage Electrostatic conductive suit，High Voltage Electrostatic conductive suit

Materials	Conducted material and textile fiber blended Double safety stitched seams with flame resistant sewing thread With adjustable hood Concealed zippers fastened by snaps Two chest pockets with flaps fastened by snaps Adjustable wrist fastened by snaps Two front insert pockets on jacket and pants respectively One side pockets on left leg
Feature	Square collar, double-stitched seams for enhanced durability Jacket and pants connected by conducted connectors
Type	Jacket and pants
Size	Both European and Asian sizes available, or made to custom sizes
Colors	Gray
Applications	Electric power industry with nominal voltage below 500kv

Electrical Conductive Suit

Size - Jacket & pant

EN Size Chart - Jacket (Unit: CM)
Size	Length	Chest	Shoulder	Sleeve
S	74	118	48. 5	61
M	76	123	50	62. 5
L	78	128	51. 5	64
XL	80	133	53	65. 5
XXL	82	138	54. 5	67
XXXL	84	143	56	68. 5

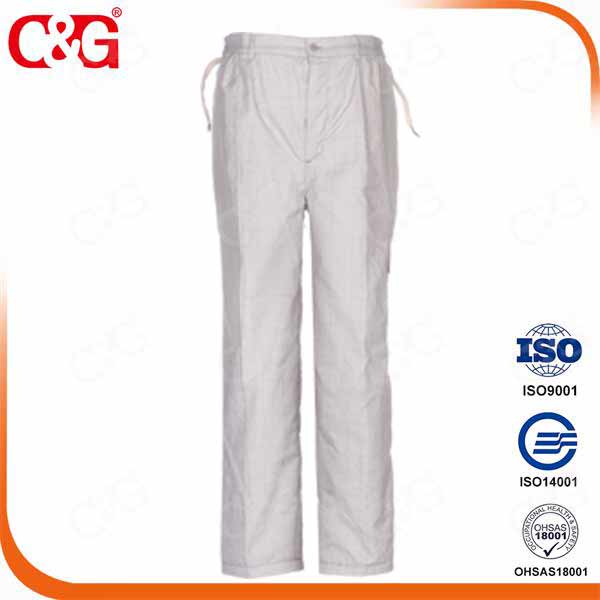

EN Size Chart - Pants (Unit: CM)
Size	Length	Waist	Hip
S	104	82	108
M	106	87	112
L	108	92	116
XL	110	97	120
XXL	112	102	124
XXXL	114	107	128
