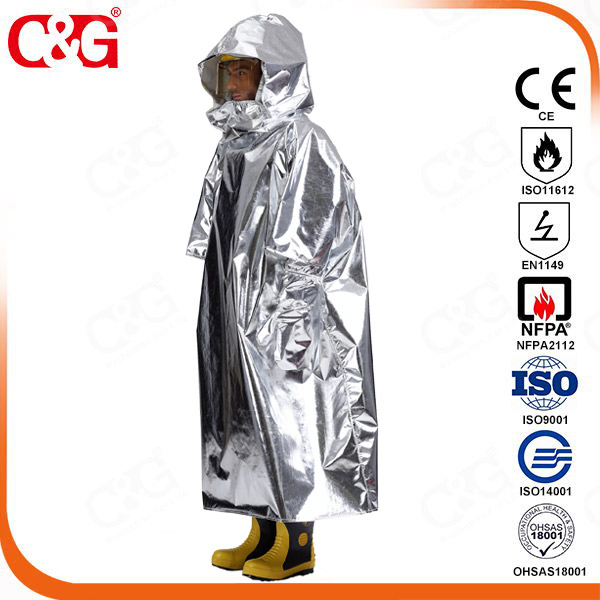

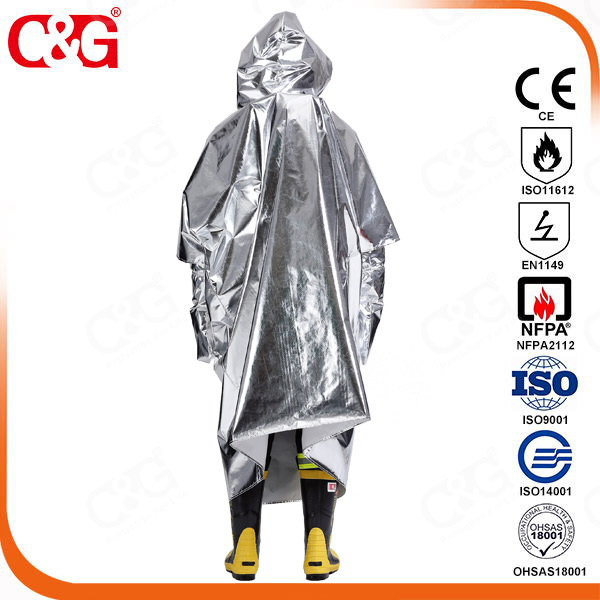

Firefighting Covering

Model:	FGR-L/A
Material:	3 layers laminated aluminized fabric
Description:	Soft and comfortable; Light weight to carry, only 0.6KG and easy to don and doff; Special mirror reflective technic, suitable for proximity fire rescue under industrial radiant heat up to 900 ℃ for 15 minutes.
Application:	Proximity fire rescue; Searching after fire accident and do cutting operation; Fire extinguishing in narrow space like tunnel, underground tunnel, etc. Rescue in high temperature.
Standard:	EN11612:2015

Fabric Property	Value	Testing Method
Breaking Force(warp)	≥1050N	ISO 1421-1
Breaking Force(weft)	≥800N	ISO 1421-1
Tearing Force(warp)	≥20N	ISO 4674-2
Tearing Force( weft)	≥30N	ISO 4674-2
Flame retardation	Afterglow≤2s	ISO 15025
Flame retardation	Afterflame≤2s	ISO 15025

Emergency Evacuation Clothing, Proximity fire rescue, firefighting covering

Related Products

Aluminized jacket and pants 5H

Aluminized jacket and pants 4HV

Can withstand the degree of 1200°C;
Can resist thermal contact and hot melt metal splash;
The aluminized material is not easily peeled from the base material;
Steel and aluminum factory or other heat dangerous industrial environment.
