FA50608-ArcD Professional 5-Point Arc Flash Safety Harness for High-Risk Electrical Operations

Fall Protection
<
>

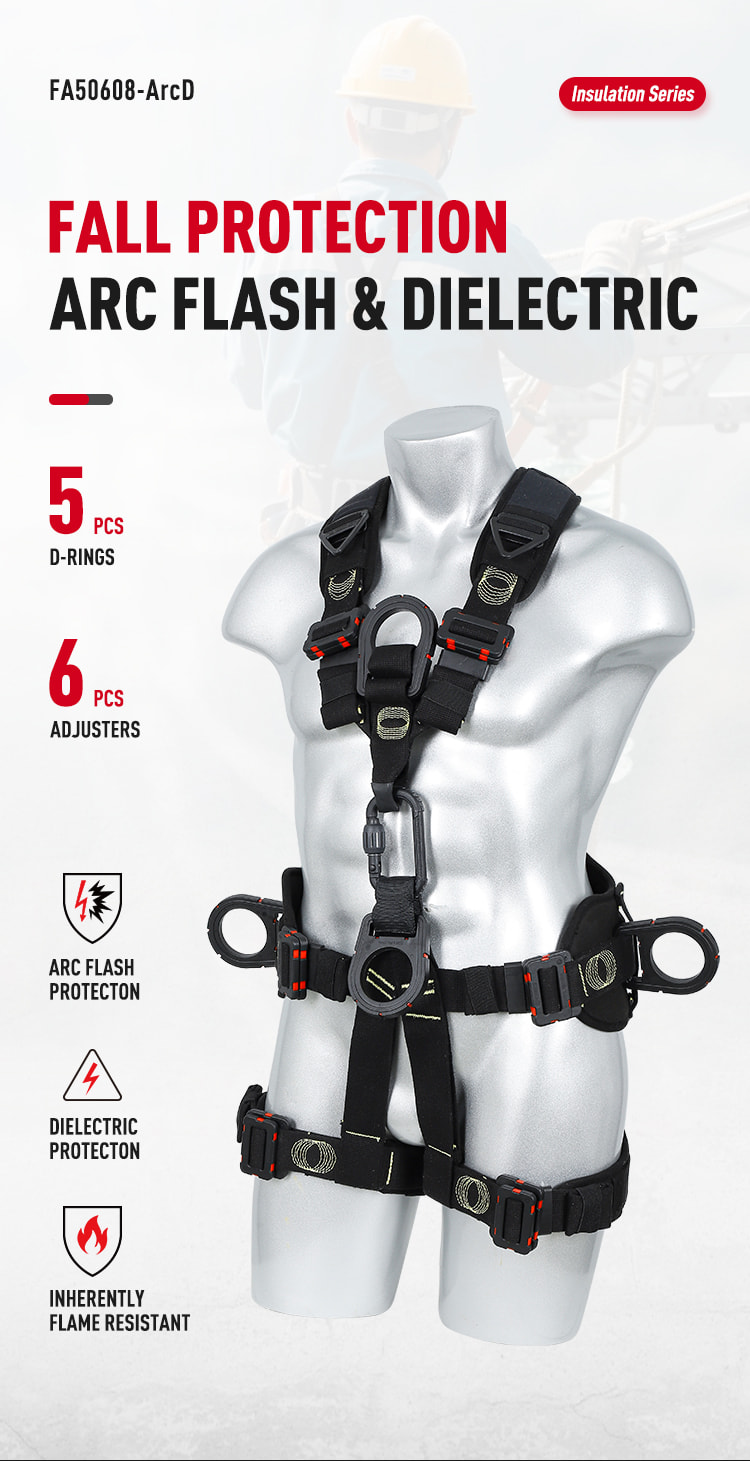

FA50608-ArcD Professional 5-Point Arc Flash Safety Harness for High-Risk Electrical Operations

View the C&G Catalogue

Model FA50607-ArcD 5 x Attachment point Construction Climbing Arc Flash Premium Full Body Harness with 9kV rated overmolded Normal connect chest and

Request a Sample Bulk Orders

If you need timely service, please contact us through online chat on our website
or Email: inquiry@cgprotection.com
WhatsApp: +8617317656853

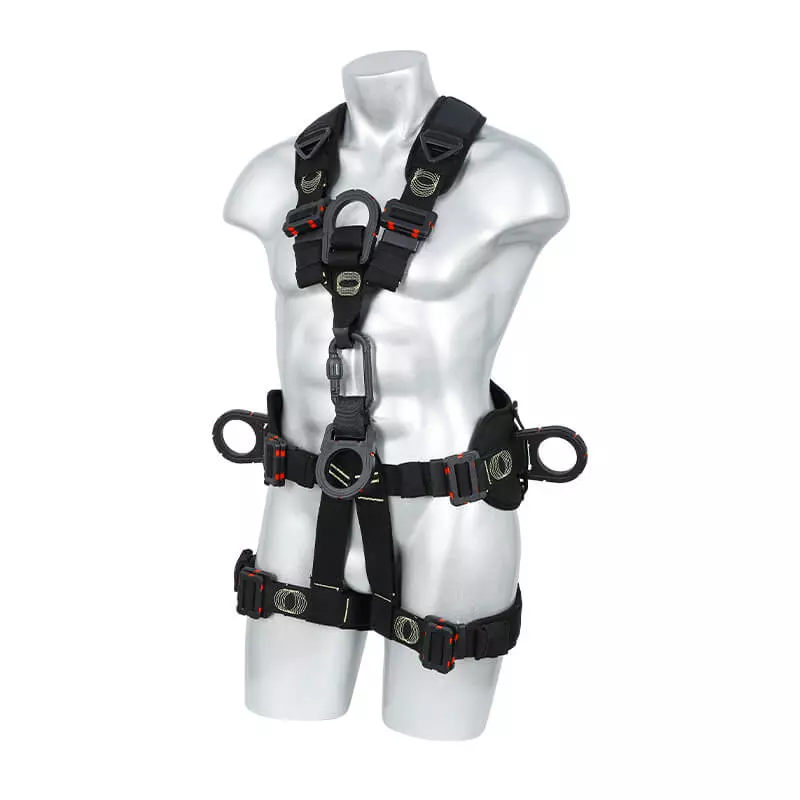

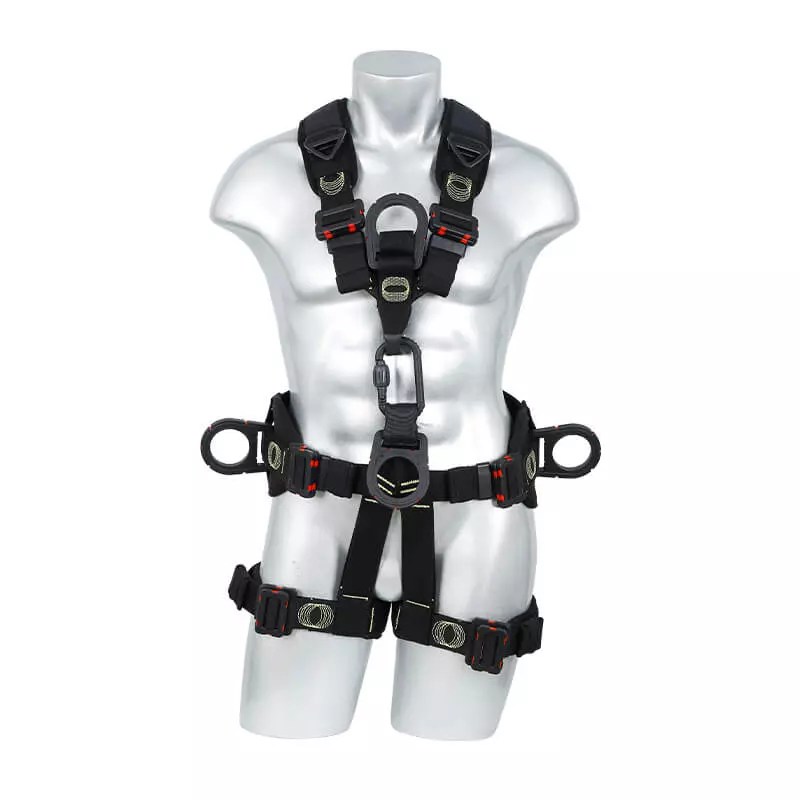

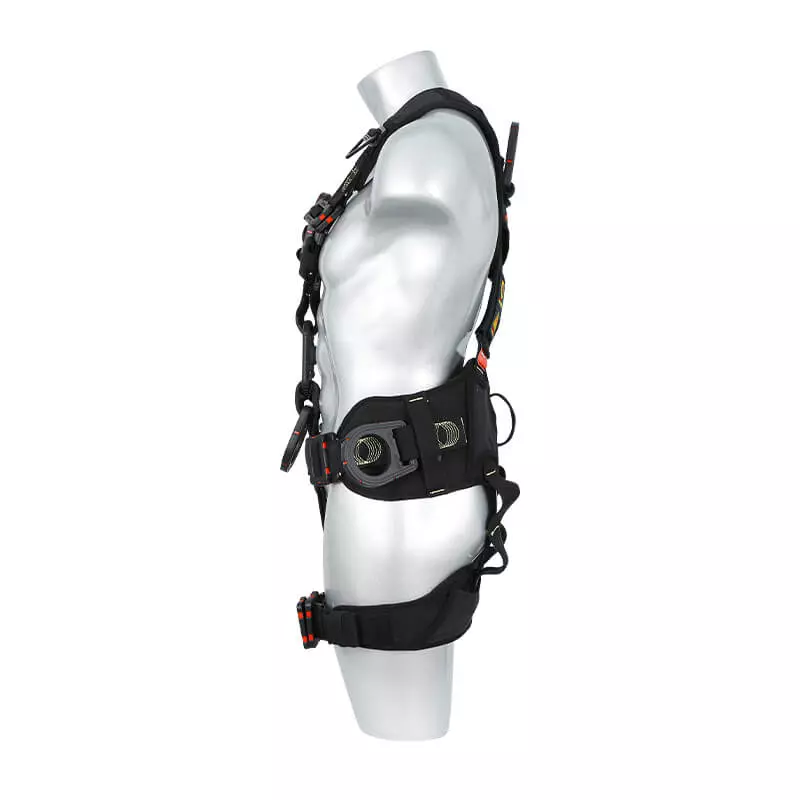

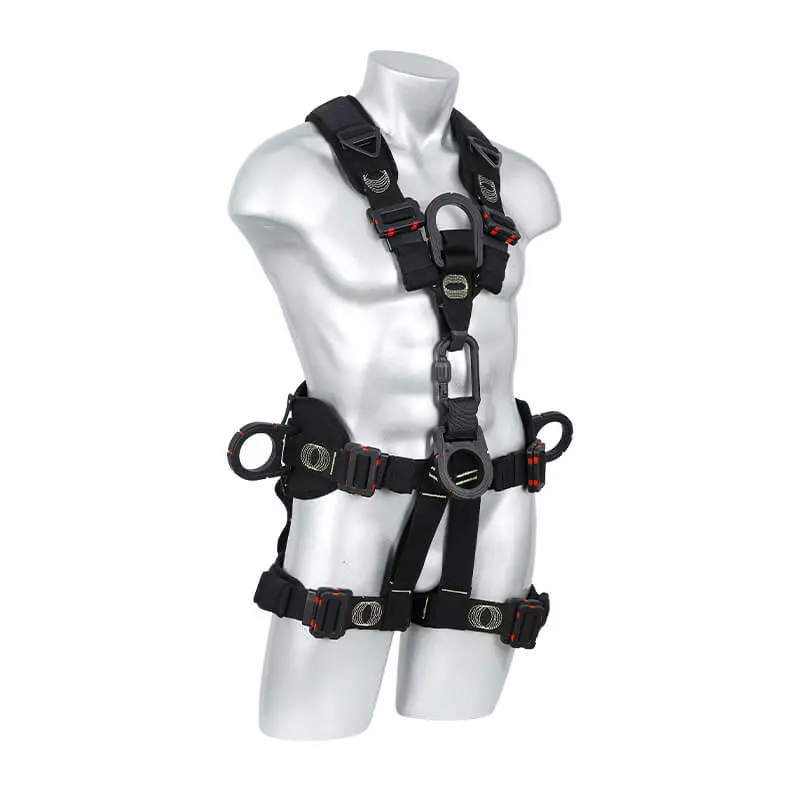

Model FA50607-ArcD 5 x Attachment point Construction Climbing Arc Flash Premium Full Body Harness with 9kV rated
overmolded Normal connect chest and leg closures is durable and provides you the protection from arc ash hazards to get
your job done right with features for maximum comfort and productivity


Performance Specifications

Category Specification
Static Strength 3600 lbs. Minimum
ANSI User Capacity One user up to 310 lbs. Max
OSHA User Capacity Allowable up to 425 lbs. Max

Relevant Standards

Standard Type Reference
ANSI ANSI Z359.11-2021
OSHA 1910.140, 1926.502
ASTM ASTM F887-23

Material Specifications

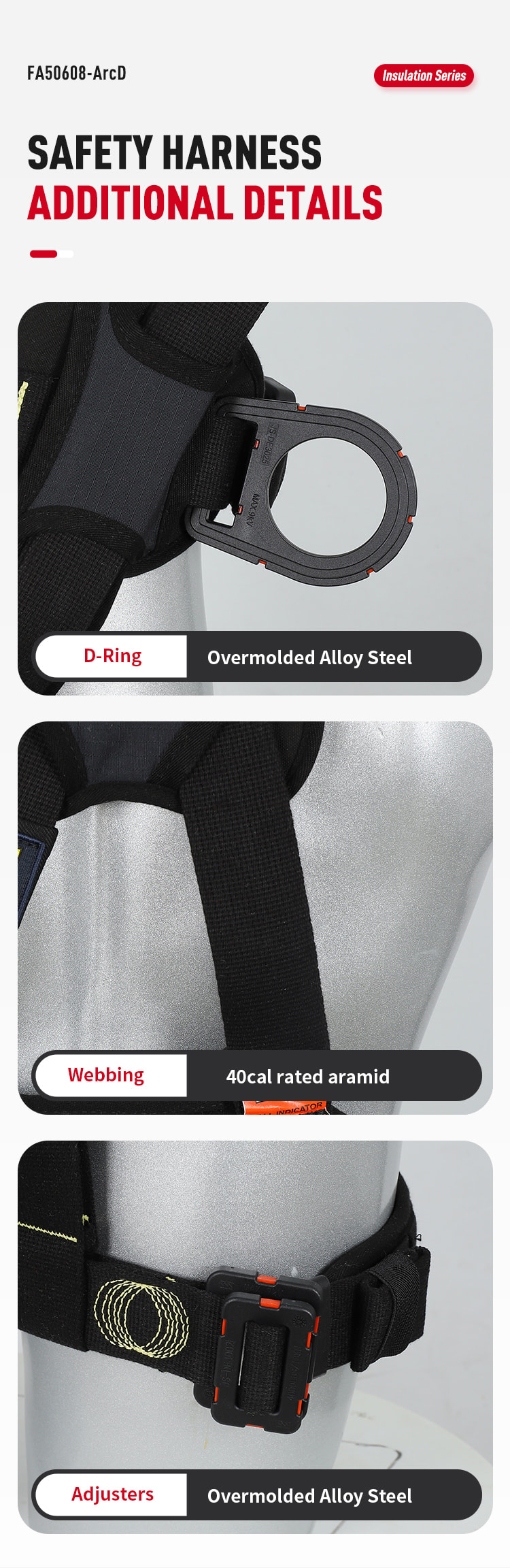

Component Material & Strength
Webbing Aramid (5,000 lbs. min. strength)
D-ring Overmolded Alloy Steel (5,000 lbs. min. strength)
Adjusters Overmolded Alloy Steel (5,000 lbs. min. strength)
Normal Connect Buckles Overmolded Alloy Steel (5,000 lbs. min. strength)

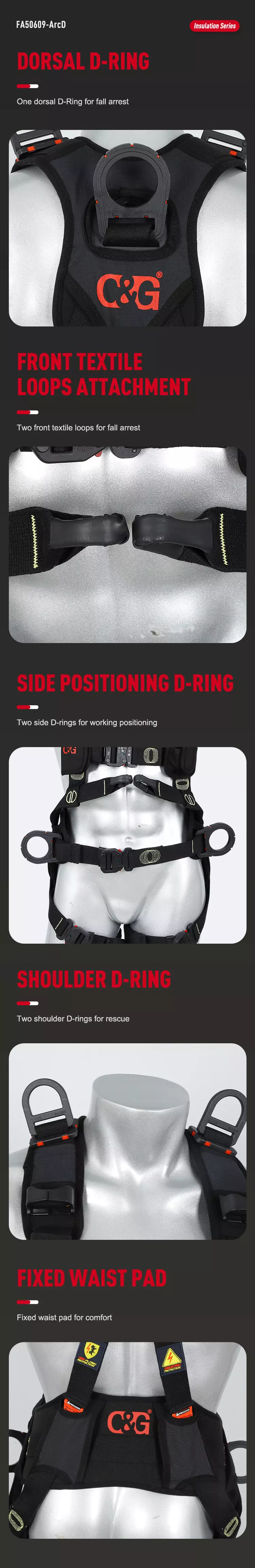

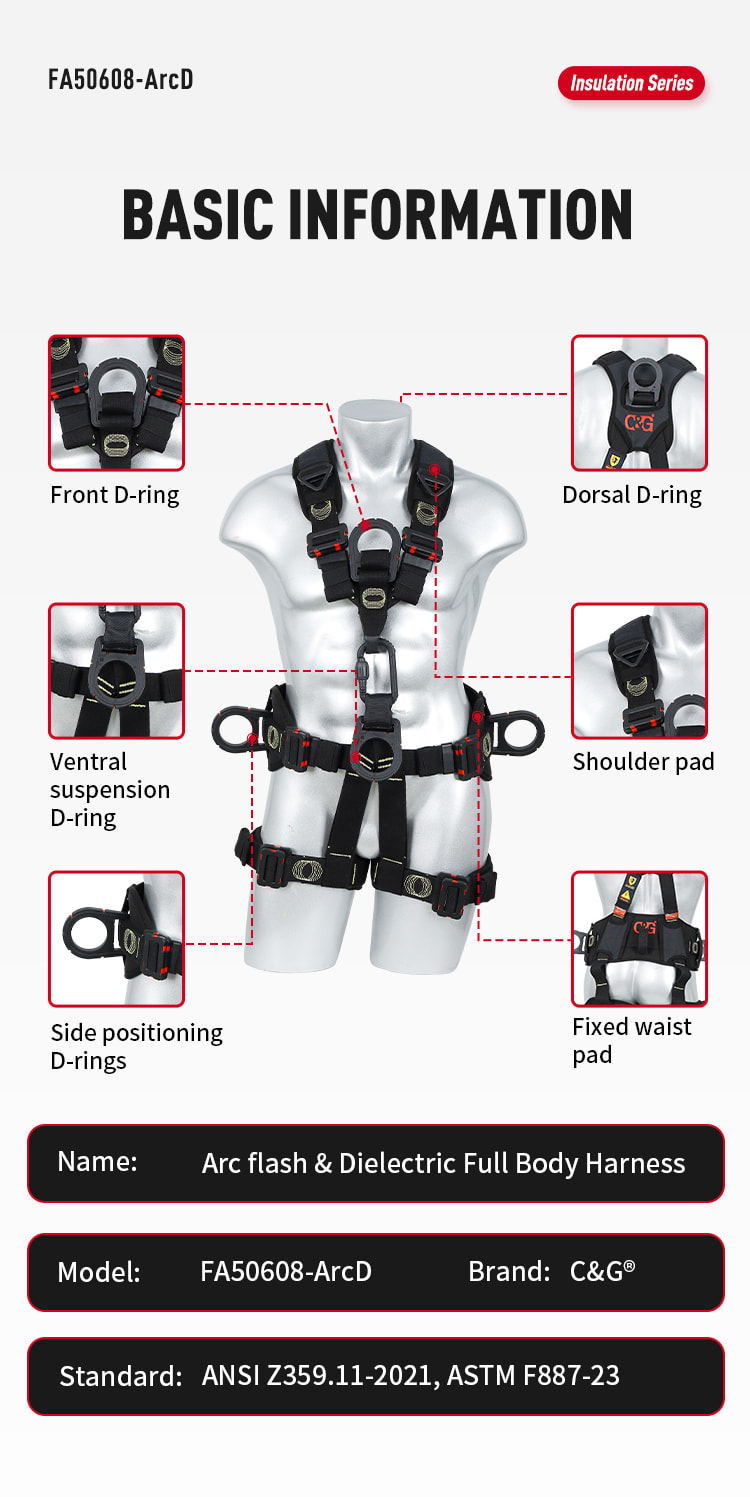

Features

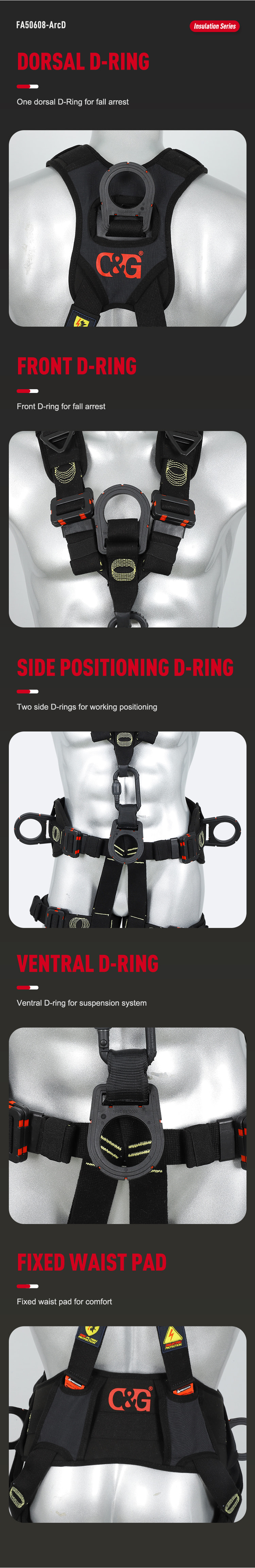

Features

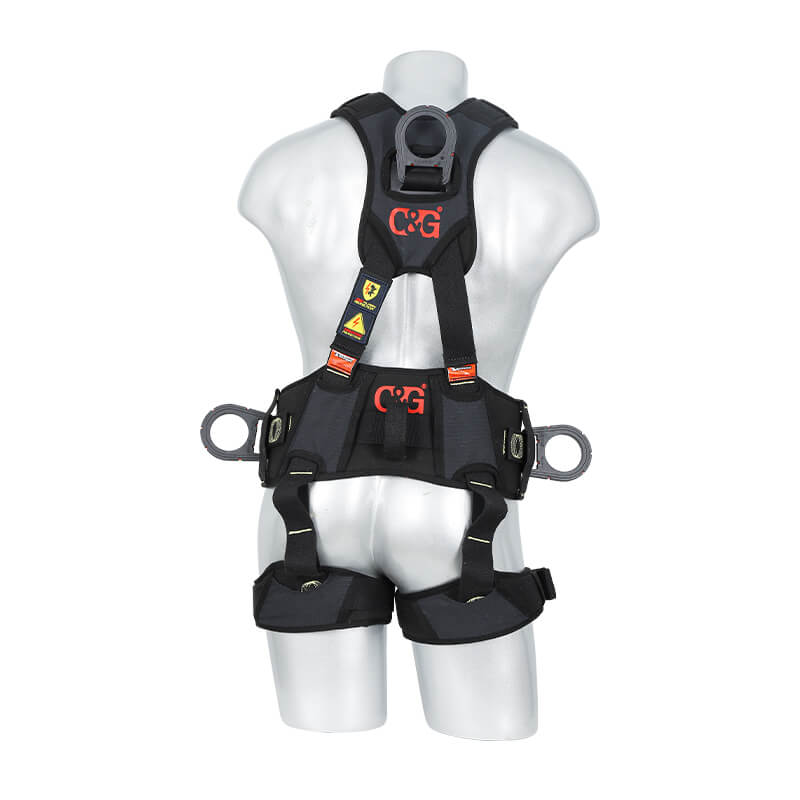

• Dorsal D-ring
• Front D-ring attachment
• Side positioning D-ring attachment
• Ventral suspension D-ring attachment
• Normal-connect chest
• Normal-connect legs
• Shoulder pads
• Fixed waist pad with Normal-connect belt
• 40 Cal rated aramid webbing
